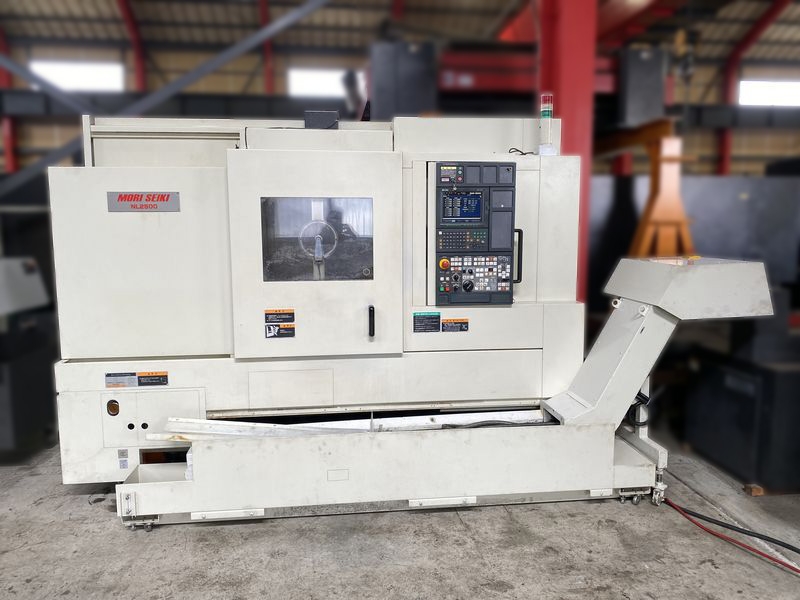

CNC Lathe – Mori seiki – 2005

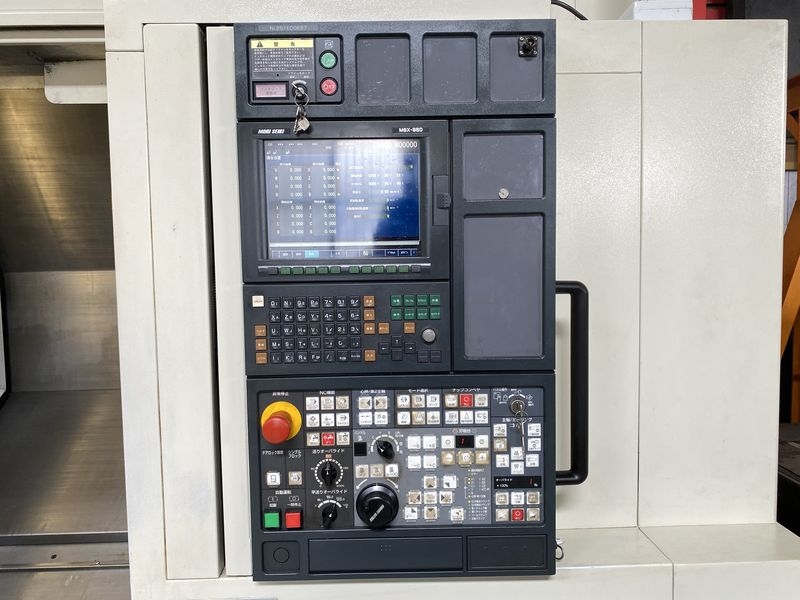

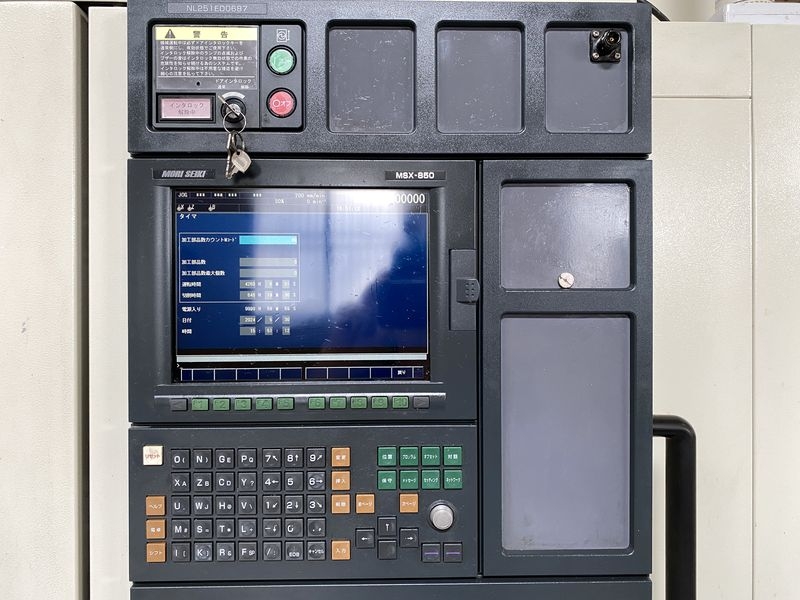

Control : MSX-850（MAPPSⅡ）
Swing on bed : 923,8 mm (interference with front cover 579.8)
Max. work diameter : 275 mm
Max. work length : 705 mm
Travel X : 260 Z : 795 mm
Spindle maximum speed : 3,500rpm
Through-spindle hole diameter : φ91 mm
ATC : 12 stations ”
Min. indexing : 0.001°
Milling speed : 6,000 rpm

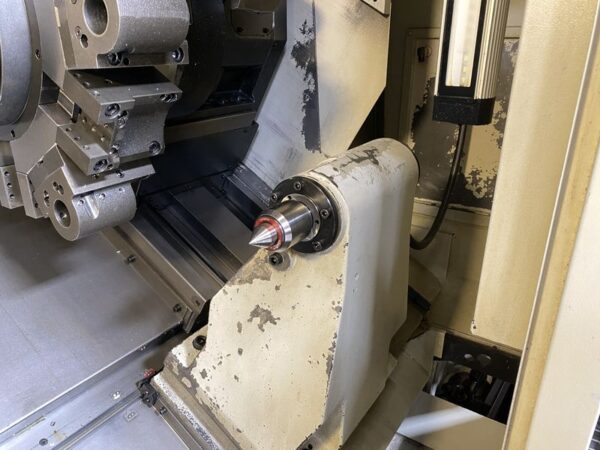

Travel of tail stock : 734 mm
Tailstock taper hole : Milling center (MT5)
Required floor surface : 3,100 x 1,923 mm
Machine height : 2,120 mm
Machine weight : 5,900 kg

≪Options≫

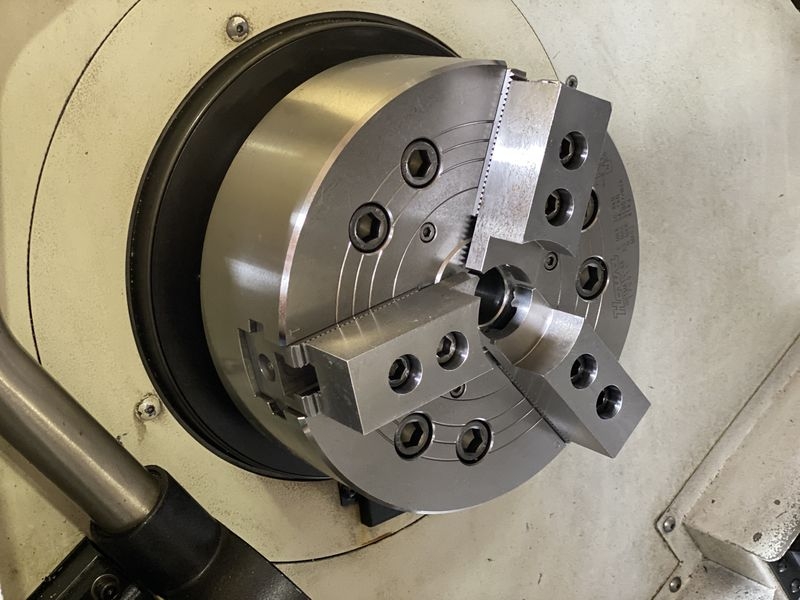

10 inch 3-jaw hollow chuck(HOWA H01MA10 A8)

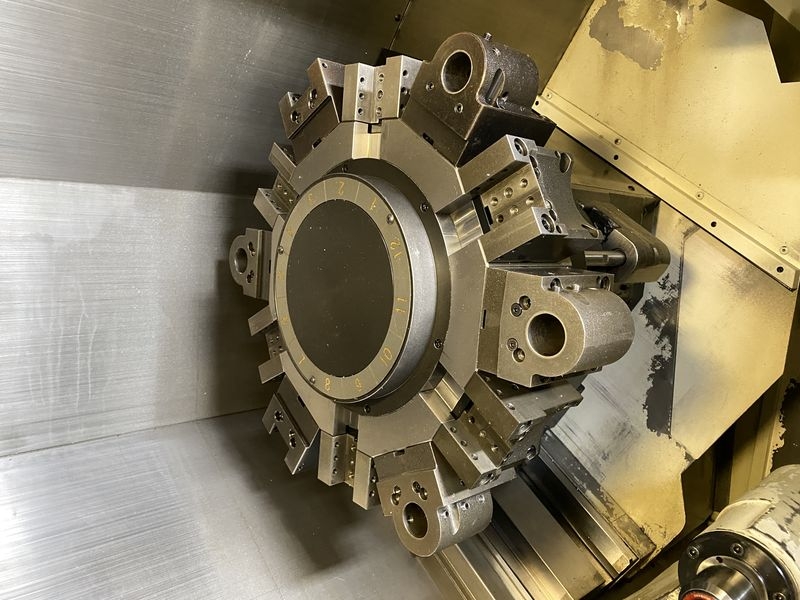

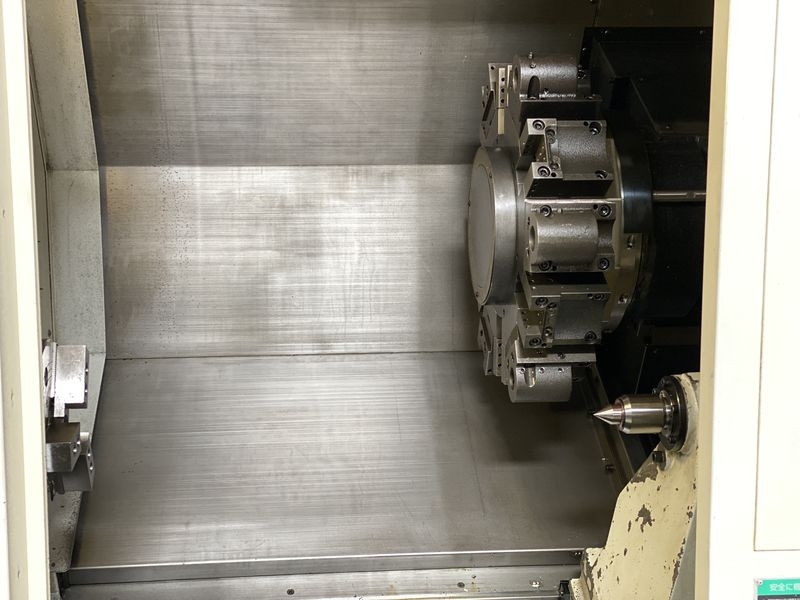

12 square turret
Holder included
Chip conveyor (fright out)
Cutting tank

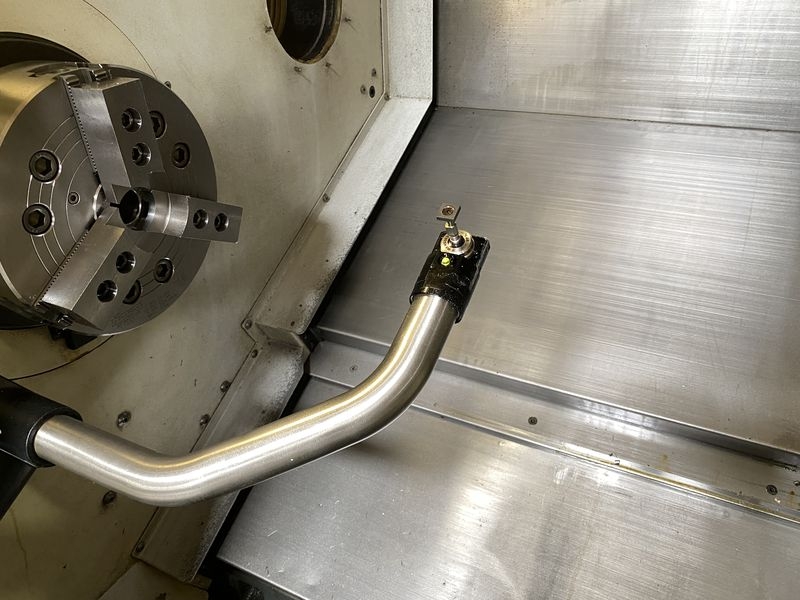

In-flight tool presetter manual (elevation type)
200 registered programs
